STS3 쇼핑몰 프로젝트[1] 메인 페이지

😎 STS3 Spring 쇼핑몰

STS3 쇼핑몰 프로젝트[1] 메인 페이지

개발자 린다씨 2022. 7. 30. 19:01

순서

1. 메인 페이지 제작

2. 메인 페이지 Controller 설정

1. 메인 페이지 제작

1) css 폴더 및 images 폴더 생성

저는 css 파일을 jsp와 분리했기 때문에 src/main/webapp/resources아래 css 폴더를 만들었습니다. 해당 경로 아래 home 폴더를 생성하고 메인 페이지에 해당하는 css 만들었습니다. 또한 메인 페이지에서 보일 이미지를 저장 하는 src/main/webapp/resources아래 images 폴더를 생성했습니다.

2) src/main/webapp/WEB-INF/lib 폴더에 JSTL 사용을 위한 jar 파일 삽입

3) 메인 페이지인 swan.jsp 생성

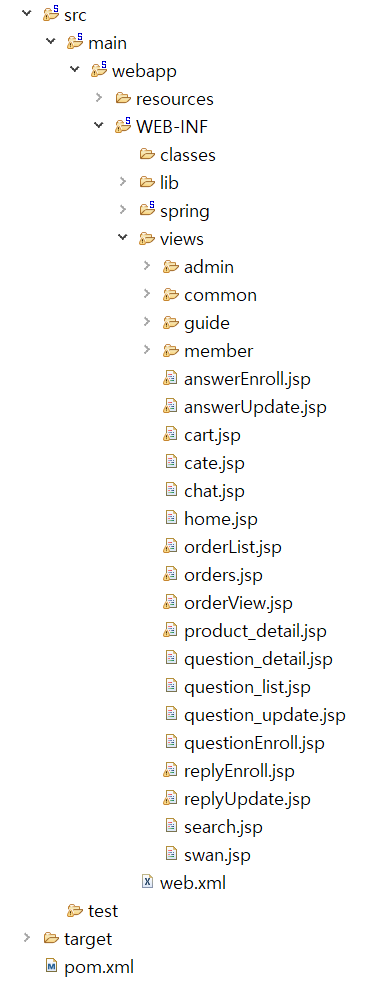

제 프로젝트의 메인 페이지 이름은 swan.jsp입니다. swan.jsp를 src/main/webapp/WEB-INF/views 경로에 생성합니다.

swan.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="path" value="${pageContext.request.contextPath}"/>
<!DOCTYPE html>
<html>
<head>
	<script
  src="https://code.jquery.com/jquery-3.4.1.js"
  integrity="sha256-WpOohJOqMqqyKL9FccASB9O0KwACQJpFTUBLTYOVvVU="
  crossorigin="anonymous"></script>
	<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
	<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/5.15.2/css/all.min.css"/>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
	<meta charset="UTF-8">
	<title>SWAN</title>
</head>
<body>
	<header>
		<jsp:include page="common/header.jsp"/>
	</header>
	<main>
		<jsp:include page="common/home.jsp"/>
	</main>

</body>
</html>

저는 조각 코드로 header.jsp와 home.jsp를 구현했습니다. header는 기본적으로 모든 .jsp에 포함되어 있기 때문입니다.

header.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="path" value="${pageContext.request.contextPath}"/>
<!DOCTYPE html>
<html>
<head>
	<script
  src="https://code.jquery.com/jquery-3.4.1.js"
  integrity="sha256-WpOohJOqMqqyKL9FccASB9O0KwACQJpFTUBLTYOVvVU="
  crossorigin="anonymous"></script>
	<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/5.15.2/css/all.min.css"/>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
	<meta charset="UTF-8">
	<link href="${path}/resources/css/home/header.css" rel="stylesheet"/>
	<title>header</title>
</head>
<body>
	<header>
		<!-- 메뉴바는 어느 페이지든 포함하고 있을 테니 여기서 contextPath 변수 값 만들기 -->
		<c:set var="contextPath" value="${ pageContext.servletContext.contextPath }" scope="application"/>
		<nav>
   			<div class="navbar">
     			<ul class="menu">
        			<li><a href="/swan">HOME</a></li>

        				<li><a href="#">로그인</a></li>


        				<li><a href="#">로그아웃</a></li>
         				<li><a href="#">마이페이지</a></li>
         				<li><a href="#">
							<svg xmlns="http://www.w3.org/2000/svg" width="22" height="22" fill="currentColor" class="bi bi-cart3" viewBox="0 0 22 22">
 								<path d="M0 1.5A.5.5 0 0 1 .5 1H2a.5.5 0 0 1 .485.379L2.89 3H14.5a.5.5 0 0 1 .49.598l-1 5a.5.5 0 0 1-.465.401l-9.397.472L4.415 11H13a.5.5 0 0 1 0 1H4a.5.5 0 0 1-.491-.408L2.01 3.607 1.61 2H.5a.5.5 0 0 1-.5-.5zM3.102 4l.84 4.479 9.144-.459L13.89 4H3.102zM5 12a2 2 0 1 0 0 4 2 2 0 0 0 0-4zm7 0a2 2 0 1 0 0 4 2 2 0 0 0 0-4zm-7 1a1 1 0 1 1 0 2 1 1 0 0 1 0-2zm7 0a1 1 0 1 1 0 2 1 1 0 0 1 0-2z" />
 							</svg>
 						</a></li>
 						<li><a href="#">주문목록</a></li>

        					<li><a href="#">관리자</a></li>


        			<li><a href="#">문의사항</a></li>
        			<li><a href="#">e-가이드 북</a></li>
      			</ul>

	      		<div class="box">
	      			<form id="searchForm" action="/search" method="get">
	    				<input type="checkbox" id="check">
	    				<div class="search-box">
	    					<select name="type" class="sStyle">
	    						<option value="T" selected="selected" style="visibility: hidden;"/>
	    					</select>
	      					<input type="text" placeholder="Type here..." name="keyword">
	      					<label for="check" class="icon">
	        					<i class="fas fa-search"></i>
	      					</label>
	    				</div>
	      			</form>
  				</div>
   			</div>
   			<jsp:include page="../cate.jsp"/>
   		</nav>
	</header>
</body>
</html>

home.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<c:set var="path" value="${pageContext.request.contextPath}" />
<%@ page session="false"%>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1">
  <script src="https://code.jquery.com/jquery-3.5.1.min.js"
    integrity="sha256-9/aliU8dGd2tb6OSsuzixeV4y/faTqgFtohetphbbj0=" crossorigin="anonymous"></script>

<!-- Boxicons CDN Link -->
<link href='https://unpkg.com/boxicons@2.0.7/css/boxicons.min.css'
	rel='stylesheet'>
<link rel="stylesheet"
	href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/5.15.2/css/all.min.css" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta charset="UTF-8">
<title>SWAN</title>
<link href="${path}/resources/css/home/homeCss.css" rel="stylesheet" />
</head>
<body>
	<div class="content">
		<div class="text-content">
			<div class="text">당신의 열정을 응원합니다.</div>
			<div class="name">SWAN</div>
			<div class="job">
				<div class="job">
					<span>당신을 위해 준비된</span>
					<div class="typing-text">
						<span class="one">편안한 </span> <span class="two">쇼핑 공간</span>
					</div>
				</div>
			</div>
		</div>
		<div class="girl">
			<img src="${path}/resources/images/girl.jpg" alt="">
		</div>
	</div>

</body>
</html>

header.css

@charset "UTF-8";

@import url('https://fonts.googleapis.com/css2?family=Gowun+Dodum&family=IBM+Plex+Sans+KR:wght@200;300;400&family=Noto+Serif+KR:wght@500&display=swap');


* {
	margin: 0;
	padding: 0;
	box-sizing: border-box;
	font-family: 'Gowun Dodum', sans-serif;
}

body{
  height: 100vh;
  width: 100%;
  display: flex;
  align-items: center;
  justify-content: center;
}

header nav {
	position: fixed;
	width: 100%;
	left: 0;
	top: 0;
	z-index: 12;
}

.navbar {
	width: 90%;
	display: flex;
	margin: 20px auto 0 auto;
	align-items: center;
	justify-content: space-between;
}

header nav .logo {
	height: 80px;
	width: 150px;
}

nav .menu {
	display: flex;
}

nav .menu li {
	list-style: none;
	margin: 0 10px;
}

nav .menu a {
	color: #2c3e50;
	font-size: 17px;
	font-weight: 500;
	text-decoration: none;
}

nav .menu a:hover {
	color: #000;
}
.text-content {
	position: absolute;
	top: 33%;
	left: 7%;
	z-index: 12;
}

.buttons {
	margin: 20px 0 0 50px;
}

.text-content .buttons button {
	outline: none;
	margin: 0 10px;
	border: none;
	border-radius: 6px;
	font-size: 18px;
	color: #fff;
	padding: 8px 16px;
	cursor: pointer;
	transition: all 0.3s ease;
	background-image: linear-gradient(135deg, #2AFADF 10%, #C346C2 100%);
}

.buttons button:hover {
	transform: scale(0.97);
}

.box {
	max-width: 400px;
	width: 100%;
}

.box .search-box {
	position: relative;
	height: 50px;
	max-width: 50px;
	margin: auto;
	box-shadow: 0 5px 10px rgba(0, 0, 0, 0.25);
	border-radius: 25px;
	transition: all 0.3s ease;
}

#check:checked ~ .search-box {
	max-width: 380px;
}

.search-box input {
	position: absolute;
	height: 100%;
	width: 100%;
	border-radius: 25px;
	background: #fff;
	outline: none;
	border: none;
	padding-left: 20px;
	font-size: 18px;
}

.search-box .icon {
	position: absolute;
	right: -2px;
	top: 0;
	width: 50px;
	background: #FFF;
	height: 100%;
	text-align: center;
	line-height: 50px;
	color: #99004d;
	font-size: 20px;
	border-radius: 25px;
}

#check:checked ~ .search-box .icon {
	background: #99004d;
	color: #FFF;
	width: 60px;
	border-radius: 0 25px 25px 0;
}

#check {
	display: none;
}

.navi_bar_area {
	width: 90%;
	display:flex;
	overflow: hidden;
	border-bottom: solid 1px #99004d;
	margin: 20px auto 0 auto;
	background-color: #99004d;
}

.navi_bar_area a {
	float: left;
	font-size: 16px;
	color: black;
	text-align: center;
	text-decoration: none;
}

.dropdown {
	float: left;
	overflow: hidden;
}

.dropdown .dropbtn {
	font-size: 16px;
	font-weight: bold;
	border: none;
	outline: none;
	color: white;
	padding: 14px 16px;
	background-color: inherit;
	font-family: inherit;
	margin: 0;
	width: 140px;
}

.dropdown-content {
	display: none;
	position: absolute;
	background-color: #f9f9f9;
	width: 430px;
	box-shadow: 0px 8px 16px 0px rgba(0, 0, 0, 0.2);
	z-index: 1;
}

.dropdown-content a {
	float: none;
	color: black;
	text-decoration: none;
	display: inline-block;
	text-align: center;
	width: 140px;
	padding: 1%;
}

.dropdown:hover .dropdown-content {
  display: block;
}

.navi_bar_area a:hover, .dropdown:hover .dropbtn {
  background-color: #450324;
}

.dropdown-content a:hover {
  background-color: #ddd;
}

.sStyle{
	display:none;
	-moz-appearance:none; /* Firefox */
	-webkit-appearance:none; /* Safari and Chrome */
	appearance:none;
}

.sStyle option{
	display:none;
	visibility: hidden;
}

homeCss.css

@charset "UTF-8";

@import
	url('https://fonts.googleapis.com/css2?family=Gowun+Dodum&family=IBM+Plex+Sans+KR:wght@200;300;400&family=Noto+Serif+KR:wght@500&display=swap');

* {
	margin: 0;
    padding: 0;
	box-sizing: border-box;
	font-family: 'Gowun Dodum', sans-serif;
}

.text-content {
	position: absolute;
	top: 50%;
	left: 7%;
	z-index: 12;
}

main .text-content .text {
	font-size: 27px;
	color: #2c3350;
}

main .text-content .name {
	color: #2c3350;
	font-size: 75px;
	font-weight: 600;
	margin: -20px 0 0 -3px;
}

main .text-content .job {
	color: #2c3350;
	font-size: 40px;
	margin: 5px 0;
	margin-top: -4px;
	display: flex;
}

.text-content .typing-text {
	margin-left: 10px;
	overflow: hidden;
	white-space: nowrap;
	border-right: 4px solid #99004d;
	color: #99004d;
	animation: typing 5s steps(10) infinite;
}

@keyframes typing {
	0% {
	 width: 0ch;
	 	}

	50% {
		width: 15ch;
		}

	100% {
	width: 0ch;}
	}
.text-content .job .one {
	color: #99004d;
}

.text-content .job .two {
	color: #99004d;
}

.content .girl img {
	position: absolute;
	width: 100%;
	height: 75%;
	bottom: 0;
	right: 80px;
	margin-top: 25%;
}


.media-icons a {
	margin-top: 8px;
	font-size: 20px;
	font-weight: 500;
	text-decoration: none;
	opacity: 0.7;
	color: #2c3350;
	transition: all 0.3s ease;
}

.media-icons a:hover {
	opacity: 1;
}

.container{
	margin-top: 1800px;
    position: relative;
    min-height: 100vh;
    max-width: 1000px;
    width: 100%;
    padding: 40px 20px;
}

.container h1{
	display: flex;
    justify-content: center;
    flex-wrap: wrap;
    margin: 20px 0;
}

.container .images .image-box{
    position: relative;
    height: 300px;
    width: 210px;
    border-radius: 6px;
    overflow: hidden;
}

.images{
    width: 100%;
    display: flex;
    justify-content: center;
    flex-wrap: wrap;
}

.images .image-box{
    margin: 8px;
}
.images .image-box img{
    height: 100%;
    width: 100%;
    border-radius: 6px;
    transition: transform 0.2s linear;
}
.image-box:hover img{
    transform: scale(1.05);
}
.image-box h6{
    position: absolute;
    bottom: 10px;
    left: 10px;
    font-size: 12px;
    font-weight: bold;
    color: #fff;
    text-transform: capitalize;
    background: black;
    width: 220px;
    height: 12%
}

.image-box p{
	font-weight: bold;
    position: absolute;
    bottom: 10px;
    left: 75%;
    font-size: 12px;
    text-transform: capitalize;
    color: #ffd400;
    background: black;

}


2. 메인 페이지 Controller 설정

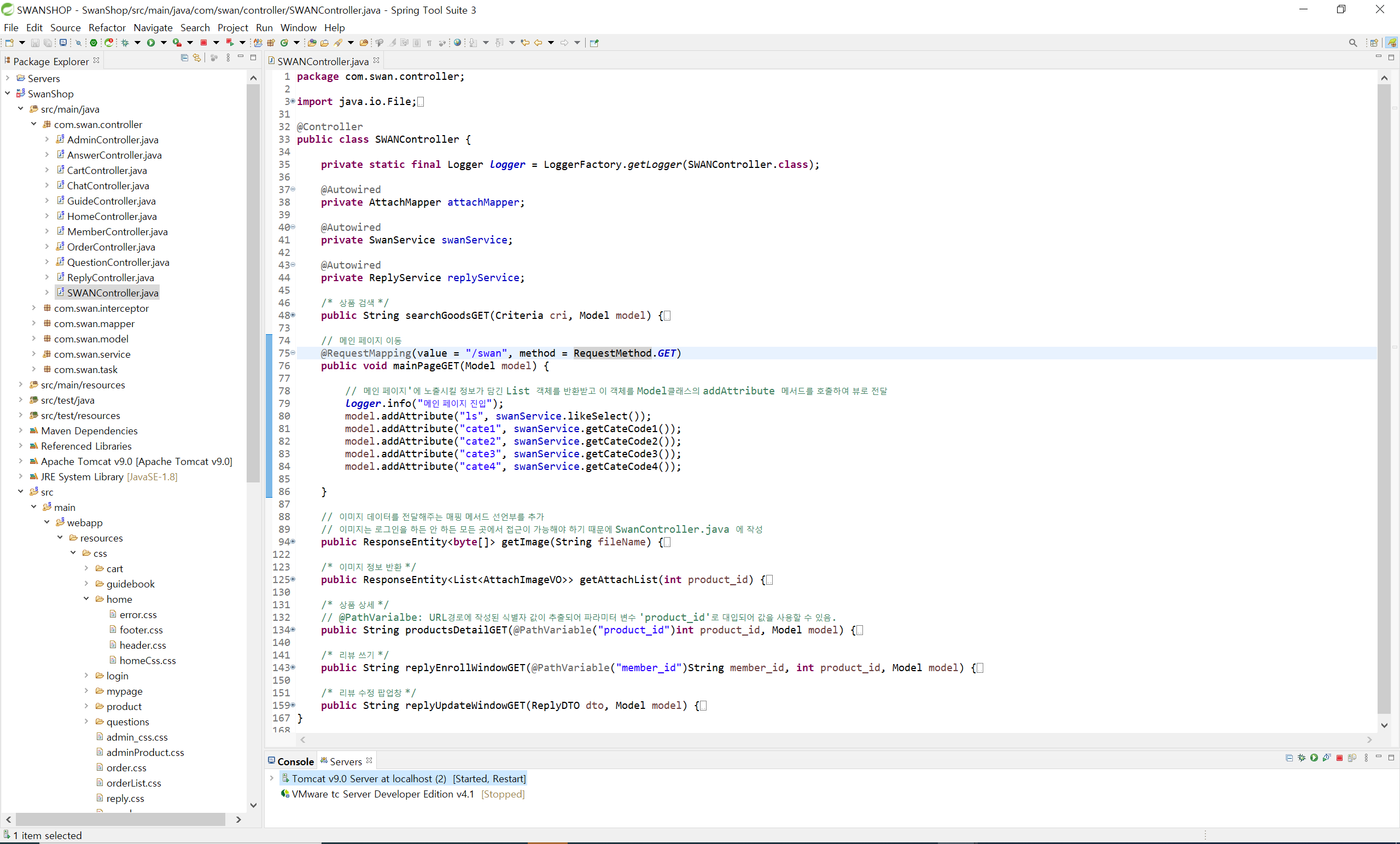

src/main/java/com.swan.controller에 SWANController.java 클래스를 생성합니다. 해당 Controller는 홈페이지에서 기본적인 기능들의 요청을 관리하도록 했습니다.

SWAN Conroller 클래스 선언부에 @Controller 어노테이션을 추가해줍니다. 해당 클래스가 컨트롤러 역할을 한다고 스프링에 선언해주는 역할을 합니다. 그리고 로그 기록을 남기기 위해 Logger 클래스인 logger 변수를 선언합니다. Lombok을 추가한 경우 @Log4j 어노테이션을 선언하면 됩니다.

	private static final Logger logger = LoggerFactory.getLogger(SWANController.class);

swan.jsp에 접근이 가능하도록 하는 메서드 mainPageGet()을 추가해줍니다. 해당 메서드에 @RequestMapping 어노테이션을 추가하고 url 경로를 "/swan"으로 설정합니다.

// 메인 페이지 이동
	@RequestMapping(value = "/swan", method = RequestMethod.GET)
	public void mainPageGET() {

		logger.info("메인 페이지 진입");

	}
